Tuning Kit Top Performances cylinder 85cc + crankshaft 44mm AM6
  • Tuning Kit Top Performances cylinder 85cc + crankshaft 44mm AM6
  • Tuning Kit Top Performances cylinder 85cc + crankshaft 44mm AM6 2
  • Tuning Kit Top Performances cylinder 85cc + crankshaft 44mm AM6 3
  • Tuning Kit Top Performances cylinder 85cc + crankshaft 44mm AM6 4
  • Tuning Kit Top Performances cylinder 85cc + crankshaft 44mm AM6 5

Tuning Kit Top Performances cylinder 85cc + crankshaft 44mm AM6

€590.48 -38% Discount
€366.10
Tax included

By buying this product you can collect up to 30 Racing Coin Racing Coins!

Top Performances 85cc Engine Kit Minarelli AM6 – Cylinder + 44mm Stroke Crankshaft

The Top Performances 85cc engine kit for Minarelli AM6 represents one of the most complete combinations of performance, reliability and durability among cast iron maxi kits. This set includes cylinder, piston and long-stroke crankshaft, offering a complete solution for high-level engine builds.

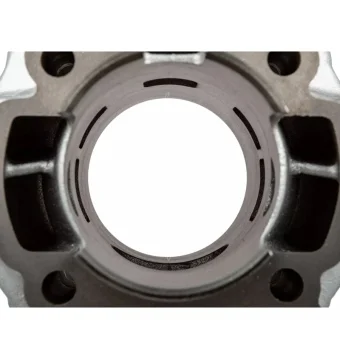

The heart of the kit is its cast iron cylinder with a 49.5 mm bore, fitted with a single-ring piston and a high-compression modular cylinder head. Combined with the 44 mm long-stroke crankshaft, a final displacement of 85cc is achieved, providing a very significant increase in torque and power.

Thanks to its cast iron construction, this kit stands out for its high mechanical strength and ease of repair in case of seizure, a clear advantage over aluminium kits. Its bridge-less exhaust port and internal porting make it an ideal option for riders seeking serious performance without sacrificing robustness.

With the proper setup, this kit can deliver approximately 17–19 HP, and with larger racing carburetors and exhausts, it is capable of reaching much higher figures in advanced builds.

Installation recommendations

  • Minimum recommended carburetor: 21 mm
  • Recommended exhausts: competition / racing (Yasuni R3, Pro Race, SCR Racing Line, etc.)
  • Attention: as this kit uses a 44 mm stroke crankshaft, it may be necessary to machine the inside of the crankcases for correct installation.

Technical data

  • Displacement: 85cc
  • Piston diameter: 49.5 mm
  • Cylinder material: Cast iron
  • Piston: 1 ring
  • Crankshaft stroke: 44 mm
  • Exhaust timing: 191°
  • Intake timing: 132°
  • Squish clearance: 0.9 ± 0.1 mm
  • Compression ratio: 8:1
  • Recommended ignition timing: 17° (1 mm before TDC)
  • Recommended spark plug: NGK BR10EG

Top Performances 85cc AM6 maxi kit contents

  • Top Performances 85cc cast iron cylinder
  • Piston
  • Needle bearing
  • Modular cylinder head / combustion chamber insert
  • Water plug
  • Complete gasket set
  • Reducer sleeve 28 / 25 mm
  • 44 mm long-stroke crankshaft

A high-performance maxi kit, designed for those who want to transform their AM6 into an extremely powerful engine while maintaining the reliability that characterizes Top Performances products.
