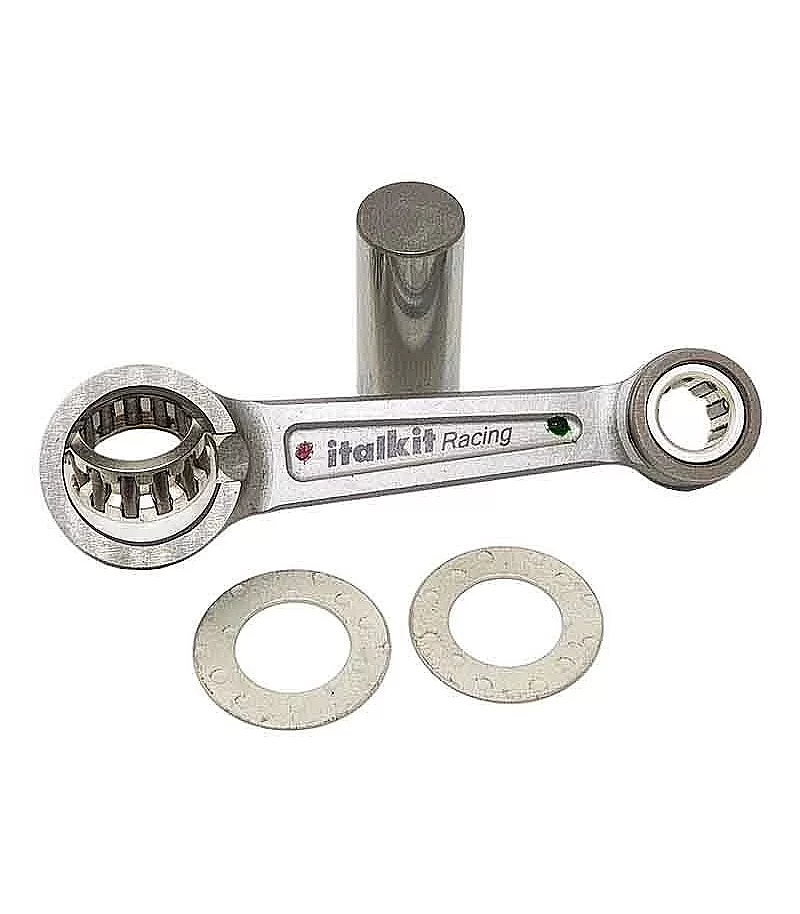

Italkit Con Rod Minarelli MR 80 Double Forged Hand Finished

<p>Connecting Rod Montesa Cota 242-304-307-309-311 Italkit BC.5046</p><p>With silver cages to withstand higher RPMs and increase reliability.</p><p>Check dimensions with photograph No.2</p><ul style="list-style-type:disc;"><li>A=116</li><li>B=20</li><li>C=26</li><li>E=16</li><li><span class="ILfuVd">Ø = 20<br /></span></li><li><span class="ILfuVd">L= 56<br /></span></li><li><span class="ILfuVd">RST= 16x20x20</span></li><li><span class="ILfuVd">VZY=20x26x16</span></li></ul>

ITALKIT

<p>Italkit Connecting Rod BC.5056 for Bultaco 250-350 Pursang MK 11, Sherpa T</p><ul style="list-style-type:disc;"><li>A=116</li><li>B=24</li><li>C=30</li><li>E=17</li><li><span class="ILfuVd">Ø = 24<br /></span></li><li><span class="ILfuVd">L= 56.0<br /></span></li><li><span class="ILfuVd">RST= 20x24x24</span></li><li><span class="ILfuVd">VZY=24x30x17</span></li></ul>

ITALKIT

<p>Italkit BC.9304 Connecting Rod Fantic 240 Trial</p><ul style="list-style-type:disc;"><li>Distance between centers (mm): 115</li><li>Inner Diameter Small End (mm): 22</li><li>Inner Diameter Big End (mm): 26</li><li>Width Small End (mm): </li><li>Width Big End (mm): 15</li><li>Crank Pin Diameter (mm): 20</li><li>Crank Pin Length (mm): 48</li><li>Piston Pin Cage (mm): 18x22x28</li><li>Crank Pin Cage (mm): 20x26x15</li><li>Connecting Rod Washers (mm)</li></ul>

ITALKIT

<p>You can use this connecting rod kit to rebuild your old Honda RS250 crankshaft. It fits 13000-NX5-790 and 13000-NXA-610.</p><p>This VHM connecting rod kit includes two connecting rods, two lower needle cages, and washers.</p><p>The <strong>VHM</strong> connecting rods have been tested and used by many teams worldwide.</p><p>The standard connecting rod deforms ovally between 0.015-0.02mm, while the VHM connecting rod only deforms 0.005mm (due to high-strength material).</p><p>Additionally, it has a super finish, which ensures a smooth surface. This helps to prevent small fractures in the material.</p><ul style="list-style-type:disc;"><li>Less deformation</li><li>High fracture resistance</li></ul><p><strong>Compatible with standard crankshaft!!</strong></p>

VHM

<p>HONDA 125 CR 88-07.</p><p>Prox <span class="product-reference right">03.1212</span></p>

PROX

<p>Reinforced Prox connecting rod for Yamaha DT R 125 (88-06) and Derbi GPR 125 2T</p><p>Prox <span class="product-reference right">03.2009</span></p>

PROX

<p>Prox Connecting Rod Honda 03.1200</p>

PROX

<ul style="list-style-type:disc;"><li>A=105</li><li>B=20</li><li>C=29</li><li>E=17</li><li><span class="ILfuVd">Ø = 22<br /></span></li><li><span class="ILfuVd">L= 56.0</span></li><li><span class="ILfuVd">RST= 16x20x20</span></li><li><span class="ILfuVd">VZY=22x29x17</span></li></ul>

HOT RODS

<p>Hot Rods Crankshaft Connecting Rod Kit 8147</p>

HOT RODS

<p>Reinforced Italkit connecting rod with silver cages.</p><p>For Gilera models 125 cc CRONO and CX 125</p><p><strong>Not valid for SP01/02</strong></p><ul style="list-style-type:disc;"><li>A=106</li><li>B=20</li><li>C=26</li><li>E=17</li><li><span class="ILfuVd">Ø = 20<br /></span></li><li><span class="ILfuVd">L=58.0</span></li><li><span class="ILfuVd">RST= 16x20x20</span></li><li><span class="ILfuVd">VZY=20x26x17</span></li></ul><p></p>

ITALKIT

<p>Italkit BC.1434R Connecting Rod <strong>Competition Machined</strong> Malossi-Polini 80 mm, width 12 mm, Ø18</p><p>Additionally, it is <strong>forged and equipped with silver cages</strong></p>

ITALKIT

<p>Italkit connecting rod <strong>machined</strong> for<strong> Minarelli P6 </strong>with <strong>double forged</strong> and <strong>hand-finished</strong>.</p><p>The connecting rod head bearing with silver cage provides reliability and resistance at high revolutions.</p><p>It also features a<strong> high-performance silver cage</strong> at the connecting rod foot.</p><p>Italkit <strong>top-of-the-line</strong> competition connecting rod.</p><ul style="list-style-type:disc;"><li>A=85</li><li>B=16</li><li>C=22</li><li>E=12</li><li><span class="ILfuVd">Ø = 16<br /></span></li><li><span class="ILfuVd">L= 34.7</span></li><li><span class="ILfuVd">RST= 12x16x15</span></li><li><span class="ILfuVd">VZY=16x22x12</span></li></ul>

ITALKIT

<p>Italkit Connecting Rod BC.0252 for Bultaco Lobito 125cc 175cc - Sherpa T250 - Tralla 101-102 - Metralla 200cc - Mercurio 155</p><p>Rod measurements according to the sketch provided in photograph no. 2.</p><ul style="list-style-type:disc;"><li>A=116</li><li>B=20</li><li>C=26</li><li>E=16</li><li><span class="ILfuVd">Ø = 20/18<br /></span></li><li><span class="ILfuVd">L= 48</span></li><li><span class="ILfuVd">RST= 16x20x20</span></li><li><span class="ILfuVd">VZY=20x26x15</span></li></ul>

ITALKIT

<span><p>Reinforced Connecting Rod 90 mm Derbi Senda 50, GPR 50</p></span>

MALOSSI

<p>Italkit BC.1532 forged connecting rod with silver cages<strong> for Minarelli AM engines</strong></p><p>This connecting rod <strong>is also mounted in Derbi Variant Start 5 engines</strong> for water cylinder setups where an <strong>85 mm length connecting rod</strong> is required, and the crankshaft pin should be 16 mm.</p><p>Connecting rod measurements according to the sketch provided in photograph no. 2.</p><ul style="list-style-type:disc;"><li>A=85</li><li>B=16</li><li>C=22</li><li>E=12</li><li><span class="ILfuVd">Ø = 16<br /></span></li><li><span class="ILfuVd">L= 40.4</span></li><li><span class="ILfuVd">RST= 12x16x15</span></li><li><span class="ILfuVd">VZY=16x22x12</span></li></ul>

ITALKIT

<p>ITALKIT Connecting Rod <strong>Machined Competition</strong> for Derbi 74 Cross TT/CR 81-82</p><p>Additionally, it is <strong>forged and features silver cages</strong></p><ul style="list-style-type:disc;"><li>Center-to-center length (mm): 90</li><li>Inner Ø Small end (mm): 16</li><li>Inner Ø Big end (mm): 22</li><li>Big end width (mm): 12</li><li>Crankpin Ø (mm): 16</li><li>Crankpin length (mm): 51</li><li>Piston pin cage (mm): 12x16x15</li><li>Crankpin cage (mm): 16x22x12</li></ul>

ITALKIT
