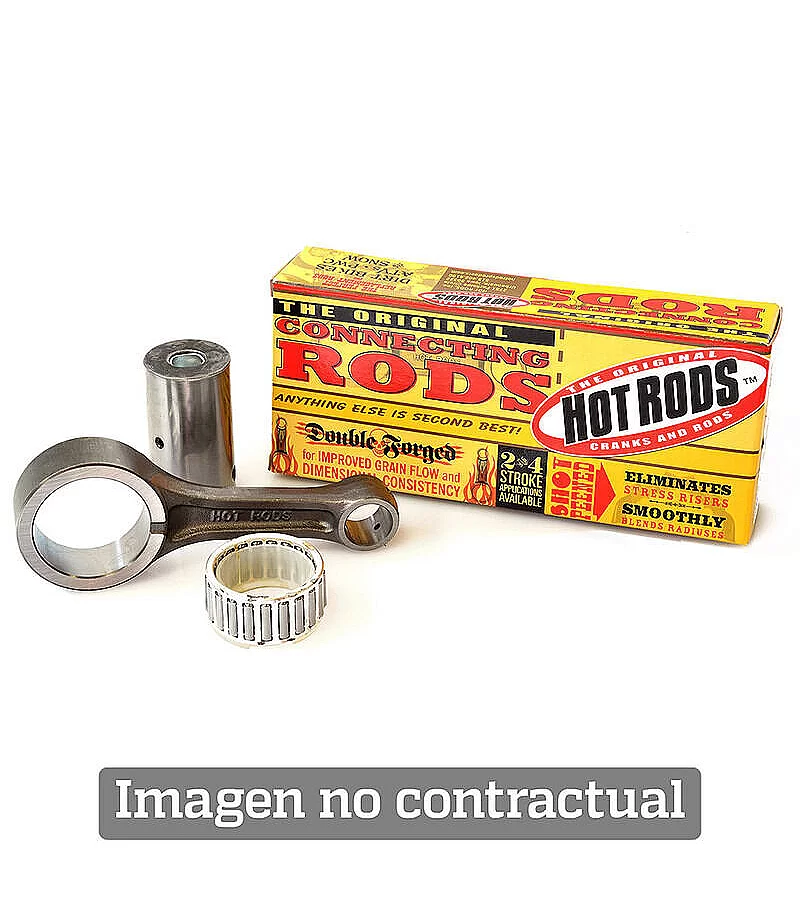

Hot Rods 8147 Crankshaft Connecting Rod Kit

<p>Prox Connecting Rod Honda 03.1200</p>

PROX

<p>Italkit BC.1434R Connecting Rod <strong>Competition Machined</strong> Malossi-Polini 80 mm, width 12 mm, Ø18</p><p>Additionally, it is <strong>forged and equipped with silver cages</strong></p>

ITALKIT

<p>Connecting rod <strong>ITALKIT</strong> with silver cages resistant to high revolutions and load.</p><p>For Honda NSR / MBX / CRM 75</p>

ITALKIT

<p>Italkit <strong>reinforced</strong> connecting rod with <strong>silver cages</strong> for Yamaha DT80LC and TZR80 LC</p><p><strong><span style="text-decoration:underline;">Important:</span> Lower pin 18 mm, verify before ordering.</strong></p><p><span class="ILfuVd">There are 2 connecting rods for the DT80 and TZR80 models with the same dimensions except for the lower pin, which can be either 20 or 18 mm, hence the importance of verification prior to ordering.</span></p><p>Connecting rod dimensions according to the sketch provided in photograph No.2.</p><ul style="list-style-type:disc;"><li>A=84</li><li>B=16</li><li>C=24</li><li>E=14</li><li><span class="ILfuVd"><strong>Ø = 18.05 (lower pin)</strong><br /></span></li><li><span class="ILfuVd">L= 43.5</span></li><li><span class="ILfuVd">RST= 12x16x16</span></li><li><span class="ILfuVd">VZY=18x24x14</span></li></ul>

ITALKIT

<p>Connecting rod <strong>ITALKIT</strong> with silver cages resistant to high revolutions and load.</p><p>For Derbi Yumbo-FDS</p>

ITALKIT

<p>Italkit BC.0412 Connecting Rod for Montesa Impala and Cota 247</p><p>With silver cages to support higher revolutions and increase reliability.</p><p>Connecting rod measurements according to the sketch provided in photograph nº2</p><ul style="list-style-type:disc;"><li>A=116</li><li>B=20</li><li>C=26</li><li>E=16</li><li><span class="ILfuVd">Ø = 20/18<br /></span></li><li><span class="ILfuVd">L= 54</span></li><li><span class="ILfuVd">RST= 16x20x20</span></li><li><span class="ILfuVd">VZY=20x26x16</span></li></ul>

ITALKIT

<p>Italkit Connecting Rod Machined BC.5006RR14 for ITALKIT Racing (18) Crankshaft of Derbi Senda 50cc and Derbi GPR 50cc</p><p>PISTON PIN 14mm.</p><ul style="list-style-type:disc;"><li>Center to Center Length (mm):90</li><li>Small End Bore Ø (mm):18</li><li>Big End Bore Ø (mm):24</li><li>Small End Bore Width (mm):</li><li>Big End Bore Width (mm):13.5</li><li>Ø Crankpin (mm):18</li><li>Crankpin Length (mm):45</li><li>Small End Bearing (mm):14x18x17</li><li>Big End Bearing (mm):18x24x13.3</li><li>Washers (mm):</li></ul>

ITALKIT

<p>Italkit Machined Connecting Rod BC.5006R for Derbi Senda 50cc and Derbi GPR 50cc Silver</p><p><strong>Double forged</strong> and <strong>hand finished</strong>.</p><ul style="list-style-type:disc;"><li>A=90</li><li>B=16</li><li>C=22</li><li>E=12.7</li><li><span class="ILfuVd">Ø = 16<br /></span></li><li><span class="ILfuVd">L=44.4</span></li><li><span class="ILfuVd">RST= 12x16x15</span></li><li><span class="ILfuVd">VZY=16x22x12</span></li></ul><p></p>

ITALKIT

<p>Hot Rods 8670 Crankshaft Connecting Rod Kit</p>

HOT RODS

<p>Reinforced Italkit connecting rod with silver cages for Yamaha DT80LC and TZR80 LC</p><p><strong><span style="text-decoration:underline;">Important:</span> Lower pin 20 mm, check before ordering.</strong></p><p><span class="ILfuVd">There are 2 connecting rods for the DT80 and TZR80 models with the same measurements except for the lower pin, which can be 20 or 18 mm; hence the importance of prior verification before ordering.</span></p><p>Connecting rod measurements according to the sketch provided in photograph no. 2.</p><ul style="list-style-type:disc;"><li>A=84</li><li>B=16</li><li>C=26</li><li>E=16</li><li><span class="ILfuVd"><strong>Ø = 20.04 (lower pin)</strong><br /></span></li><li><span class="ILfuVd">L= 43.5</span></li><li><span class="ILfuVd">RST= 12x16x16</span></li><li><span class="ILfuVd">VZY=20x26x16</span></li></ul>

ITALKIT

<p>Connecting rod crankshaft AIRSAL stroke 45 (32087550)</p>

AIRSAL

<p>Reinforced Prox connecting rod for Yamaha DT R 125 (88-06) and Derbi GPR 125 2T</p><p>Prox <span class="product-reference right">03.2009</span></p>

PROX

<p>Italkit connecting rod <strong>machined</strong> for <strong>PUCH 74 COBRA-TT-REPLICA</strong> with <strong>double forging</strong> and <strong>hand-finished</strong>.</p><p>The big end bearing with <strong>PEEK treatment</strong> provides <strong>30% less</strong> resistance, offering reliability and durability at high RPMs.</p><p>Additionally, it features a high-performance <strong>silver cage</strong> at the small end.</p><p>Italkit competition <strong>top of the line</strong> connecting rod.</p><ul style="list-style-type:disc;"><li>A=80</li><li>B=17</li><li>C=21</li><li>E=10</li><li><span class="ILfuVd">Ø = 16<br /></span></li><li><span class="ILfuVd">L= 43.0</span></li><li><span class="ILfuVd">RST= 14x17x17</span></li><li><span class="ILfuVd">VZY=16x21x10</span></li></ul><p></p>

ITALKIT

<p><strong>Nice Rich Pro reinforced</strong> connecting rod for <strong>Minarelli AM6</strong> engines</p><p>The lower bearing is silver, and the upper one is special for high RPMs; moreover, it is a <strong>forged connecting rod</strong>, making it more robust than the original, thus suitable for tuned engines.</p>

<p>Connecting Rod Prox 03.7202</p><p><span style="text-decoration:underline;"><b>APRILIA</b></span>:</p><ul><li>RS 125 (92-10)</li><li>AF-1 125 (98-92)</li><li>Europa 125 (90-91)</li><li>MX 125 (04-06)</li><li>Pegaso 125 (89-94)</li><li>Red Rose 125 (87-94)</li><li>RX 125 (08-10)</li><li>RX 125 (89-98)</li><li>SX 125 (08-10)</li><li>Tuono 125 (03-04)</li></ul>

PROX

<p>Italkit Connecting Rod BC.5056 for Bultaco 250-350 Pursang MK 11, Sherpa T</p><ul style="list-style-type:disc;"><li>A=116</li><li>B=24</li><li>C=30</li><li>E=17</li><li><span class="ILfuVd">Ø = 24<br /></span></li><li><span class="ILfuVd">L= 56.0<br /></span></li><li><span class="ILfuVd">RST= 20x24x24</span></li><li><span class="ILfuVd">VZY=24x30x17</span></li></ul>

ITALKIT
