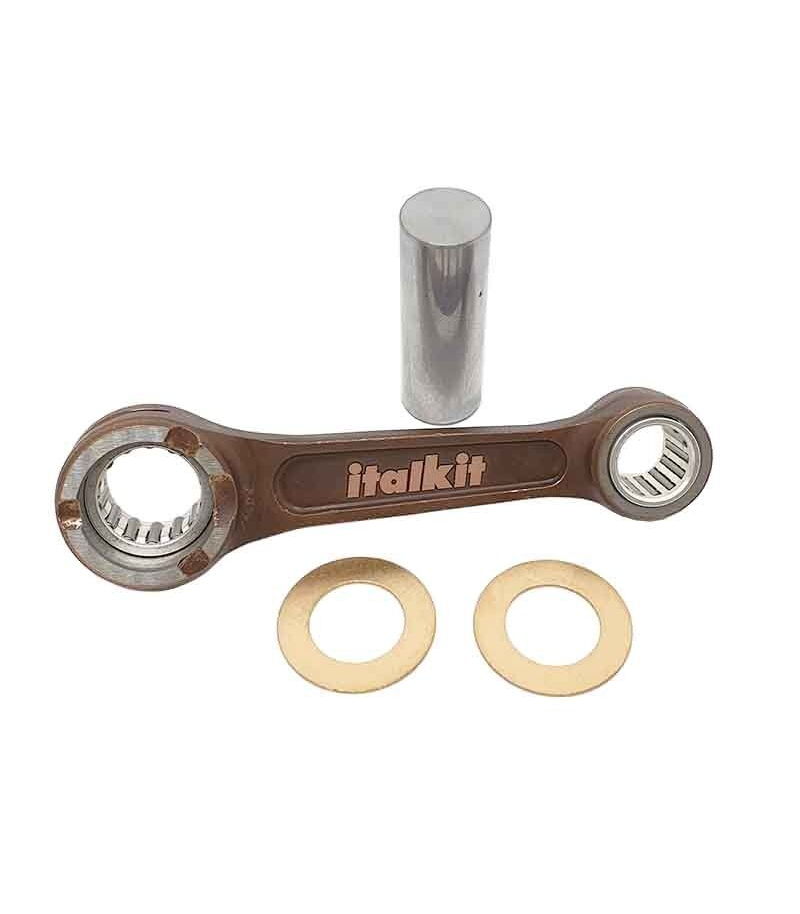

Connecting rod Gilera SP01, SP02 ,RX 125 Italkit

<ul style="list-style-type:disc;"><li>A=105</li><li>B=20</li><li>C=29</li><li>E=17</li><li><span class="ILfuVd">Ø = 22<br /></span></li><li><span class="ILfuVd">L= 56.0</span></li><li><span class="ILfuVd">RST= 16x20x20</span></li><li><span class="ILfuVd">VZY=22x29x17</span></li></ul>

HOT RODS

<p><strong>Nice Rich Pro reinforced</strong> connecting rod for <strong>Minarelli AM6</strong> engines</p><p>The lower bearing is silver, and the upper one is special for high RPMs; moreover, it is a <strong>forged connecting rod</strong>, making it more robust than the original, thus suitable for tuned engines.</p>

<p>Prox Connecting Rod Honda 03.1200</p>

PROX

<p>Connecting Rod Prox 03.7202</p><p><span style="text-decoration:underline;"><b>APRILIA</b></span>:</p><ul><li>RS 125 (92-10)</li><li>AF-1 125 (98-92)</li><li>Europa 125 (90-91)</li><li>MX 125 (04-06)</li><li>Pegaso 125 (89-94)</li><li>Red Rose 125 (87-94)</li><li>RX 125 (08-10)</li><li>RX 125 (89-98)</li><li>SX 125 (08-10)</li><li>Tuono 125 (03-04)</li></ul>

PROX

<p>Connecting rod <strong>ITALKIT</strong> with silver cages resistant to high revolutions and load.</p><p>For Derbi Yumbo-FDS</p>

ITALKIT

<p>Italkit Connecting Rod <strong>machined</strong> for <strong>Rotax Max125 Kart</strong> with <strong>double forging</strong> and <strong>hand-finished</strong>.</p><p>The connecting rod head bearing with <strong>PEEK treatment</strong> provides <strong>30% less</strong> friction offering reliability and resistance at high revolutions.</p><p>Additionally, it features a <strong>high-performance silver cage</strong> at the small end of the connecting rod.</p><p><strong>Top-of-the-line</strong> connecting rod.</p>

ITALKIT

<p>Italkit connecting rod for Minarelli AM6 50cc Special Silver New Model 18</p><p><strong>Check dimensions with photograph no.2</strong></p><ul style="list-style-type:disc;"><li>A=85</li><li>B=16</li><li>C=24</li><li>E=13.5</li><li><span class="ILfuVd">Ø = 18<br /></span></li><li><span class="ILfuVd">L=40.5</span></li><li><span class="ILfuVd">RST=12x16x15</span></li><li><span class="ILfuVd">VZY=18x24x13.3</span></li></ul><p>Italkit BC.1533</p>

ITALKIT

<p>Connecting Rod Malossi 85 mm Minarelli Engine<span></span></p>

MALOSSI

<p><strong>Minarelli MR 80 Machined Connecting Rod with Double Forging</strong> and <strong>hand-finished</strong> with silver cage resistant to high revolutions and load.</p><p>Top-of-the-line <strong>connecting rod</strong> for your street or competition MR80.</p><ul style="list-style-type:disc;"><li>Length between centers (mm): 90</li><li>Internal Ø of rod foot (mm): 17</li><li>Internal Ø of rod head (mm): 22</li><li>Rod Head Width (mm): 12</li><li>Crankpin Ø (mm): 16</li><li>Crankpin Length (mm): 38.7</li><li>Piston Pin Cage (mm): 13x17x15</li><li>Crankpin Cage (mm): 16x22x12</li></ul>

ITALKIT

<span>For crankshafts 538009/5313587</span>

MALOSSI

<table class="table-data-sheet table-responsive"> <tbody> <tr class="odd"> <td>Brand</td> <td>MONTESA</td> </tr> <tr class="even"> <td>Model</td> <td>Cota 247-Enduro 250 H6-250 VR</td> </tr> <tr class="odd"> <td>CODE</td> <td>BC.5047</td> </tr> <tr class="even"> <td>Length Between Centers (A)</td> <td>116</td> </tr> <tr class="odd"> <td>Foot Diameter (B)</td> <td>20</td> </tr> <tr class="even"> <td>Head Diameter (C)</td> <td>26</td> </tr> <tr class="odd"> <td>Head Width (E)</td> <td>16</td> </tr> <tr class="even"> <td>Piston Pin Diameter (Ø)</td> <td>20</td> </tr> <tr class="odd"> <td>Piston Pin Length (L)</td> <td>55</td> </tr> <tr class="even"> <td>Piston Cage (RST)</td> <td>16x20x20</td> </tr> <tr class="odd"> <td>Pin Cage (VZY)</td> <td>20x26x15</td> </tr> </tbody> </table>

ITALKIT

<p>HONDA 125 CR 88-07.</p><p>Prox <span class="product-reference right">03.1212</span></p>

PROX

<p>Prox Connecting Rod <span class="product-reference right">03.1102</span> Honda NSR / MBX / CRM 75</p>

PROX

<p>Reinforced Italkit connecting rod with silver cages for Yamaha DT80LC and TZR80 LC</p><p><strong><span style="text-decoration:underline;">Important:</span> Lower pin 20 mm, check before ordering.</strong></p><p><span class="ILfuVd">There are 2 connecting rods for the DT80 and TZR80 models with the same measurements except for the lower pin, which can be 20 or 18 mm; hence the importance of prior verification before ordering.</span></p><p>Connecting rod measurements according to the sketch provided in photograph no. 2.</p><ul style="list-style-type:disc;"><li>A=84</li><li>B=16</li><li>C=26</li><li>E=16</li><li><span class="ILfuVd"><strong>Ø = 20.04 (lower pin)</strong><br /></span></li><li><span class="ILfuVd">L= 43.5</span></li><li><span class="ILfuVd">RST= 12x16x16</span></li><li><span class="ILfuVd">VZY=20x26x16</span></li></ul>

ITALKIT

<p>Connecting Rod Italkit BC.5052 Montesa Enduro-Capra 250 H6-VB Cota 247</p><ul style="list-style-type:disc;"><li>Center-to-center Length (mm):116</li><li>Inner Diameter Small End (mm):20</li><li>Inner Diameter Big End (mm):26</li><li>Width Small End (mm):</li><li>Width Big End (mm):16</li><li>Crankpin Diameter (mm):20</li><li>Crankpin Length (mm):55</li><li>Piston Pin Cage (mm):16x20x17</li><li>Crankpin Cage (mm):20x26x16</li><li>Connecting Rod Washers (mm)</li></ul>

ITALKIT

<p>Hot Rods Crankshaft Connecting Rod Kit 8147</p>

HOT RODS
